BVSC

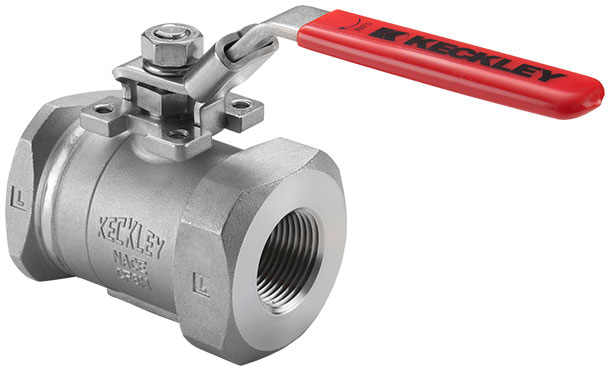

Class 900 Seal Welded Ball Valves — 2160 W.O.G.
Models
Use the buttons below to view the available specs in your desired body material.
Stainless Steel - NPT (ASTM A 351, Grade CF8M)
Drag your finger across the table to scroll
| Size Range | Pressure Rating | End Connection | Style |
|---|---|---|---|
| 1/4" - 2" | 2160 PSI @ 100°F | NPT End | BVSC |
See BVSC-Stainless.pdf for model numbers, dimensions, and a breakdown of parts.
See BVSC-Ordering-Guide.pdf for other material options.
Stainless Steel - Socket Weld (ASTM A 351, Grade CF8M)
Drag your finger across the table to scroll
| Size Range | Pressure Rating | End Connection | Style |
|---|---|---|---|
| 1/4" - 2" | 2160 PSI @ 100°F | Socket Weld End | BVSC |
See BVSC-Stainless-SocketWeld.pdf for model numbers, dimensions, and a breakdown of parts.
See BVSC-Ordering-Guide.pdf for other material options.
Carbon Steel - NPT (ASTM A 216, Grade WCB)
Drag your finger across the table to scroll
| Size Range | Pressure Rating | End Connection | Style |
|---|---|---|---|
| 1/4" - 2" | 2220 PSI @ 100°F | NPT End | BVSC |
See BVSC-CarbonSteel.pdf for model numbers, dimensions, and a breakdown of parts.
See BVSC-Ordering-Guide.pdf for other material options.
Carbon Steel - Socket Weld (ASTM A 216, Grade WCB)
Drag your finger across the table to scroll
| Size Range | Pressure Rating | End Connection | Style |
|---|---|---|---|
| 1/4" - 2" | 2220 PSI @ 100°F | Socket Weld End | BVSC |
See BVSC-CarbonSteel-SocketWeld.pdf for model numbers, dimensions, and a breakdown of parts.
See BVSC-Ordering-Guide.pdf for other material options.
Features
- ASTM grade materials
- Complies with NACE MR0175, ASME B31 Piping Codes, ASME B16.34, API 607, and API 608
- R-PTFE seating material standard; PEEK optional for high-temperature applications
- Full bore design for high flow capacity
- Designed for pressures of up to 2160 PSIG
Catalogs
Brochures
Drawings
- BVSC-Stainless.pdf
- BVSC-Stainless-SocketWeld.pdf
- BVSC-CarbonSteel.pdf
- BVSC-CarbonSteel-SocketWeld.pdf
